Catch Plates
    C2   C1

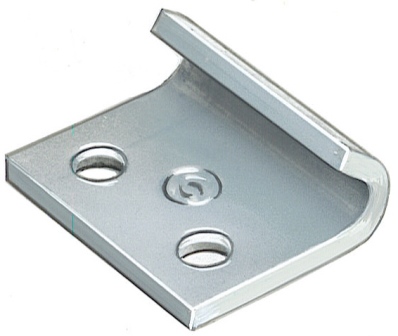

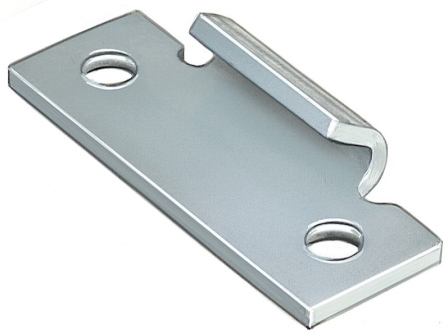

Catch plates are generally necessary whenever a wire link straight or a wire link flex is selected for your toggle latch requirement.   C-2 Catch Plate                           C-1 Catch Plate

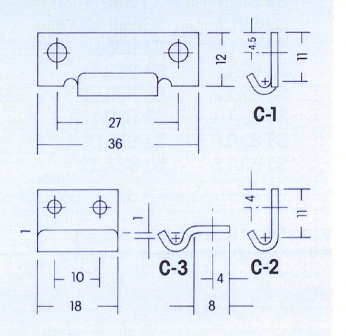

Catch Plates Technical Info

Catch Plates

Information

Catch Plate Material

CR/2SE, 1.6 mm

304 2B Stainless, 1.6 mm

Dimension of Mounting Holes:

             C1

             C2

             C3



4.2 mm

3.3 mm

3.3 mm

Maximum Tension (C1/2/3):

             Catch

             Catch-Stainless



240 kg

320 kg
