S2 Series
         The S2 series toggle latch is a larger style toggle fastener with a wide base plate (20 mm) for use where there is easy
           access for operating the latch.

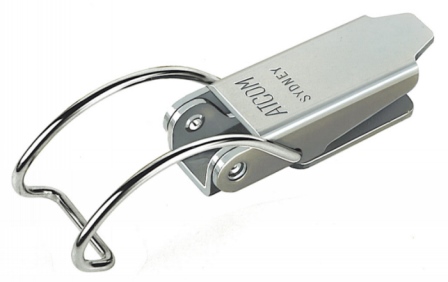

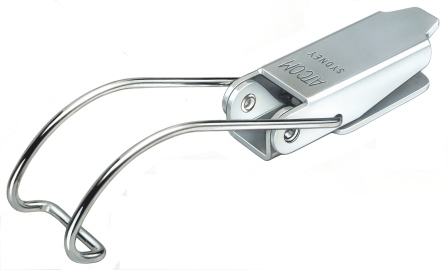

S2-B1/L1/WLF42 S2-B1/L1/WLF50
S2-B1-L1/WLF42 S2-B1/L1/WLF50

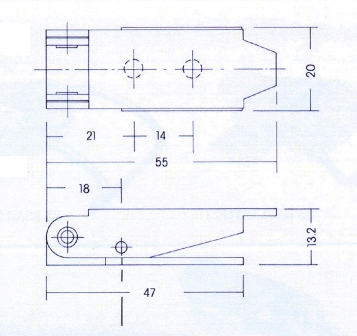

            S2 Bases Technical Information
S2 Bases Techinical Info

S2 Series

Information

Latch Body Material

CR/2SE, 1.6 mm

Dimension of Mounting Holes

4.2 mm

Maximum Tension

260 kg

                                    S2-B1/L1
