Wire Links |
||||||||||

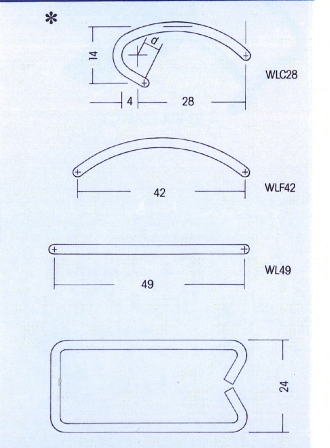

| The wire link component of the
toggle latch is available in either straight, flex or claw. For example,
WL49 is a straight wire link measuring 49 mm. If this wire link is
flexed it becomes a WLF of 42 mm and if it is made into a claw if
becomes a WLC of 28 mm. Non standard wire links can be produced to fit our standard base-lever assembly to custom fit your application. Minimum quantities of 1000 apply. |
||||||||||
| Wire Links Technical Information | ||||||||||
 |
Wire Link Straight | Maximum Tension | Wire Link Flex | Maximum Tension | Wire Link Claw | Claw Depth | Maximum Tension | |||
| WL20 | 260kg | WLF17 | 120 kg | |||||||
| WL20-SS | 260 kg | WLF17-SS | 110 kg | |||||||
| WL26 | 260 kg | WLF22 | 104 kg | |||||||
| WL26-SS | 200 kg | WLF22-SS | 95 kg | |||||||
| WL37 | 260 kg | WLF32 | 120 kg | |||||||
| WL37-SS | 200 kg | WLF32-SS | 110 kg | |||||||
| WL49 | 260 kg | WLF42 | 80 kg | WLC28 | 14 | 50 kg | ||||
| WL49-SS | 200 kg | WLF42-SS | 50 kg | WLC22-SS | 14 | 36 kg | ||||
| WL60 | 260 kg | WLC32 | 14 | 50 kg | ||||||
| WL60-SS | 200 kg | WLC32-SS | 14 | 41 kg | ||||||
| WL71 | 260 kg | WLC42 WLC50 |
20 18 |
41 kg 50 kg |
||||||
| WL71-SS | 200 kg | WLC50-SS | 18 | 36 kg | ||||||
| WL82 | 260 kg | WLC60 | 18 | 50 kg | ||||||
| WL94 | 260 kg | WLC60 WLC66 WLC72 |
25 20 18 |
32 kg 36 kg 50 kg |
||||||
| NOTE: The figures for the Wire Link Claw were obtained by pulling directly from an 8 mm diameter rod; the Wire Link Straight and Wire Link Flex directly from a catch-plate | ||||||||||
| Material: Bright spring wire, range
2, ASA 1472, 2.24 diameter 304 spring temper stainless steel, 2.24 diameter |
||||||||||
 |

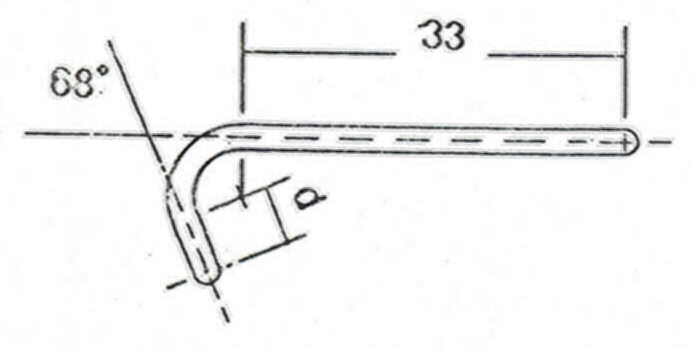

WLH | In addition is the wire link hook (WLH) which is very useful when reaching forward. The standard hook is 5 mm, the same WLC can be extended to 10 mm. It can also be used as a Link Flex for additional flexing. Available in the following sizes: 21, 33, 44, 55, 66 and 78 mm. | ||||||||
 |
||||||||||
