S3 Series |
||||
| The S3 series is
the smallest of our range of toggle latches and the most cost effective. It is a completely interchangeable toggle latch with choices of 3 bases, 3 levers and multiple wire links. There are 17 combinations of Base/Lever assemblies (refer table). |
S3-B1/L1 | S3-B3/L1 | S3-B3R/L1 | |
| S3-B1/L2 | S3-B3/L2 | S3-B3R/L2 | ||
| S3-B1/L3 | S3-B3/L3 | S3-B3R/L3 | ||
| S3-B2/L1 | S3-B1R/L1 | S3-B1A/L2 | ||
| S3-B2/L2 | S3-B1R/L2 | S3-B3A/L2 | ||
| S3-B2/L3 | S3-B1R/L3 | |||

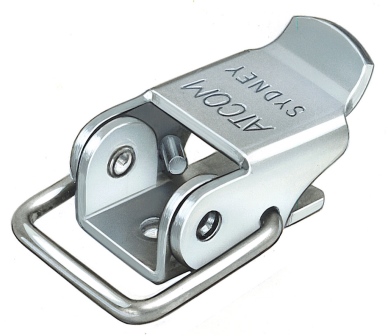

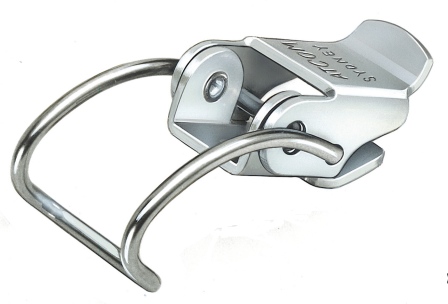

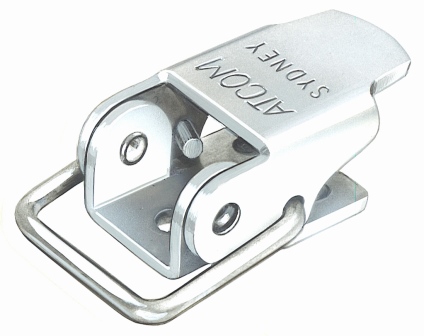

| S3-B3/L1/WL20 with C-2 | S3-B3A/L2/WLC28 | S3-B1A/L2/WLC32 |
|
|
|
|
|
|

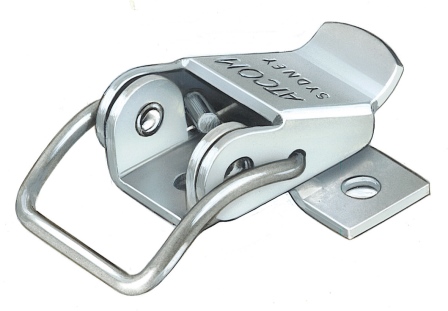

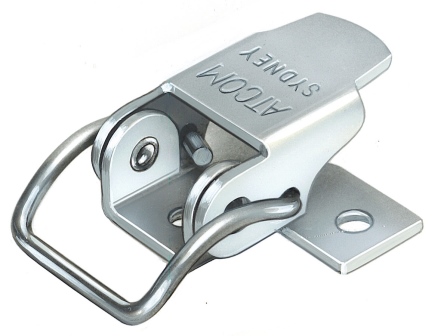

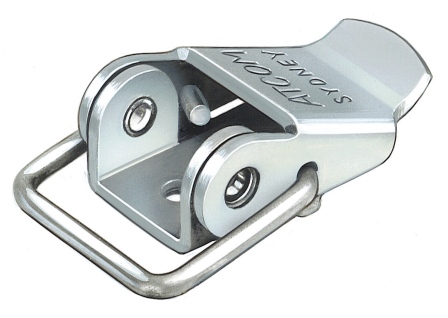

| S3-B1/L1/WLF22 with C-1 | S3-B1R/L3/WLF22 | S3-B2/L2/WL20 | S3-B2/L3/WL20 |
 |
 |
 |
 |
 |
| S3 Bases Technical Information | |
 |
B1A and B3A are available from 0 to 30 degrees. |

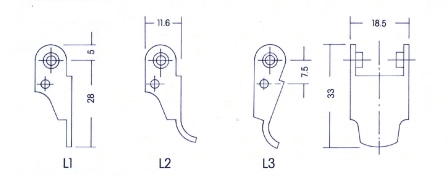

| S3 Levers Technical Information | |||
 |
S3 Series | Information | |
| Latch Body Material | CR/2SE, 1.6 mm 304 2B Stainless, 1.6 mm |
||
| Dimensions of mounting holes S3-B1 S3-B2 S3-B3 |
4.2mm or 3.3mm 3.3mm 3.3mm |
||
| Maximum Tension S3 S3 Stainles |
240 kg 320 kg |
||
 |
